Ultra-Thin Nano Aerogel Film with 0.02W/(m.k) Low Thermal Conductivity for Heat Insulation

Short Description:

After a reaction of chemical solution, the aerogel will formed as collosol first, then re-gelatinization to form as aerogel. After remove most of the solvent in the gel, it would obtain a low density cellular material which is full-gassiness space network structure and solid-like appearance, the density is very close to air density. Compared with Aerogel Felt, Ultra-thin aerogel film is a kind of flexible film material with extremely low thermal conductivity that is made from thin aerogel treated by a special process. With excellent features of low thermal conductivity and heat insulation, the aerogel film can solve the problem of heat equalization of consumer products in a small space, and provide heat insulation protection for the weak heat-resistant components. It can also control and change the direction of heat conduction to improve performance and shelf life of the products.

Gửi email to us

Product Detail

Product Tags

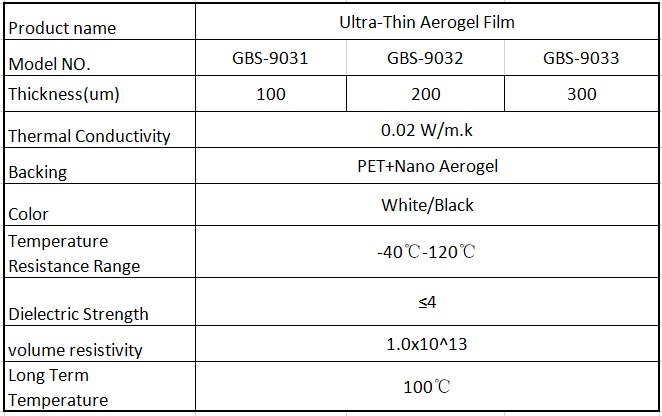

Đặc điểm：

1. Ultra thin nano aerogel film,100-300um
2. Very low thermal conductivity 0.02W/(m.k)
3. Excellent thermal insulation and heat insulation
4. Fireproof and Waterproof
5. Low density and good flexibility
6. Easy to laminated with Copper, Polyimide, Aluminum, graphite material
7. Easily removed for inspection and maintenance
8. High tensile strength

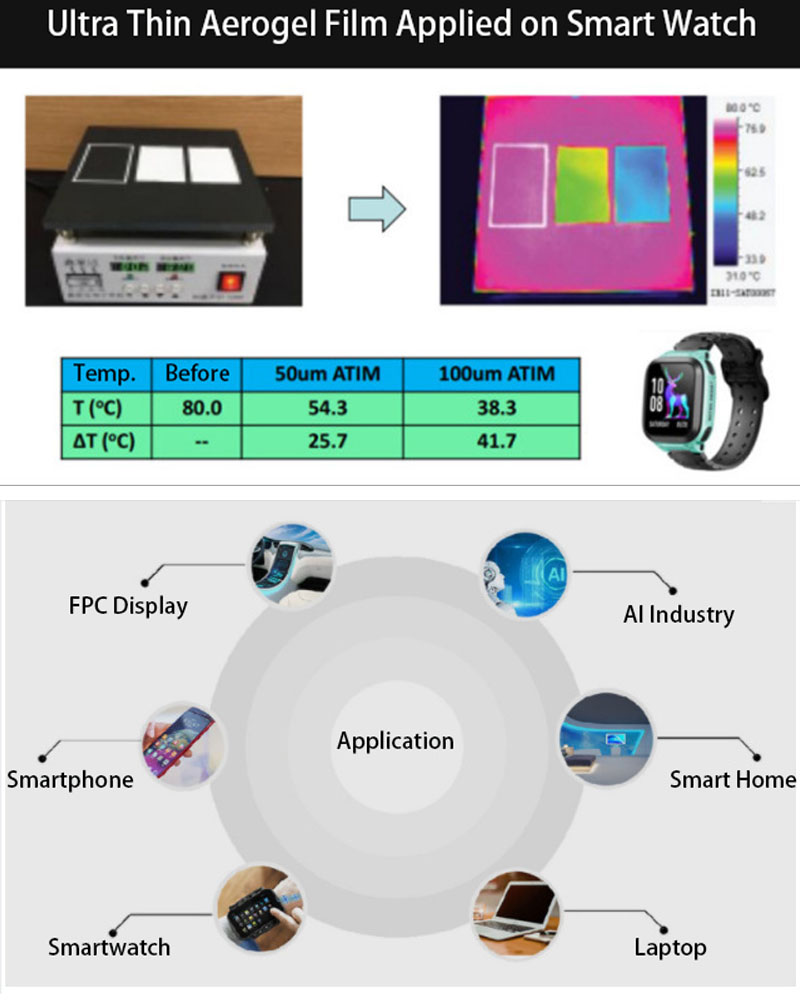

Aerogel heat insulation film use the nano air hole to stop or change the direction of heat conduction to reduce the temperature of the products, it can also laminated with other heat dissipation material or EMI Shielding material like Copper, Aluminum,Polyimide, Graphite and die cut into different shapes. Aerogel film can be applied to wide range of electronic products like FPC display, Smart phone/watch, Laptop, Trang chủ appliance, the Aerogel insulation film can reduce or eliminate the uncomfortable touch feeling of the hot spot temperature from the products, and improve the comfort of the consumer product experience.

Application industry:
